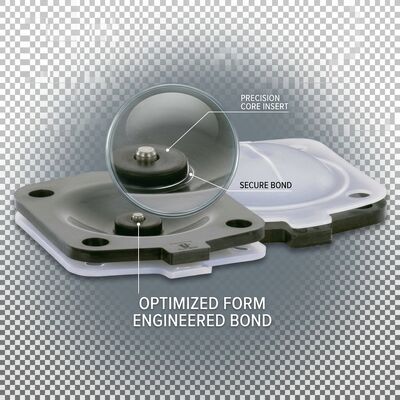

80 Series AODD Rubber Diaphragm Seals Ideal Choice for Maintaining Pressure Integrity in Pneumatic and Hydraulic Systems

Product Description:

The Rubber Diaphragm Seals are high-quality replacement diaphragms designed to provide reliable sealing solutions across a wide range of industrial applications. Manufactured using premium elastomeric materials such as FKM, these diaphragm seals ensure exceptional durability and chemical resistance, making them ideal for use in demanding environments including industrial, chemical, and food processing sectors. The flexible nature of these rubber gaskets allows them to accommodate movement and vibration effectively, ensuring a secure seal that maintains integrity under dynamic conditions.

One of the key features of these Rubber Diaphragm Seals is their flexibility. Engineered to adapt to varying pressure fluctuations and mechanical movements, the diaphragms can flex and move without compromising the sealing surface. This flexibility is crucial in applications where equipment experiences continuous movement or vibration, as it prevents leakage and enhances the overall lifespan of the seal. As a result, these elastomeric seals are widely preferred in systems where reliability and performance are paramount.

Constructed primarily from FKM, a high-performance fluoroelastomer known for its outstanding chemical resistance and thermal stability, these replacement diaphragms withstand harsh operating conditions. FKM material offers excellent resistance to oils, fuels, chemicals, and extreme temperatures, making the rubber gasket suitable for diverse industrial applications. In addition to FKM, other elastomeric materials may also be used depending on specific customer requirements, ensuring the seals can be customized to meet precise operational demands.

Available in multiple sizes—10, 25, 40, 50, 80, and 100 mm—these diaphragm seals can cater to a broad spectrum of equipment and machinery. The range of sizes guarantees compatibility with various valve types, pumps, and other components requiring effective sealing solutions. This versatility simplifies the replacement process, allowing for easy integration without extensive modifications or custom manufacturing.

Designed for use in challenging operating environments, these elastomeric seals are perfectly suited for industrial, chemical, and food processing applications. Their robust construction and material properties ensure that they maintain performance in environments exposed to aggressive chemicals, fluctuating temperatures, and strict hygiene standards. In food processing, the rubber diaphragm seals comply with necessary safety requirements, providing a contamination-free sealing solution that supports operational efficiency and product safety.

In summary, the Rubber Diaphragm Seals offer a combination of flexibility, durability, and chemical resistance that makes them indispensable components in sealing applications. These replacement diaphragms, made from premium elastomeric materials like FKM, ensure reliable performance even in the most demanding industrial, chemical, and food processing environments. Their availability in a variety of sizes along with their ability to accommodate movement and vibration highlight their adaptability and effectiveness as elastomeric seals. Whether you need a robust rubber gasket or an innovative sealing solution, these diaphragm seals deliver exceptional quality and long-lasting service.

Features:

• Product Name: Rubber Diaphragm Seals
• Seal Type: Diaphragm Seal
• Operating Environment: Suitable for industrial, chemical, and food processing environments
• Size Options: 10, 25, 40, 50, 80, 100
• Flexibility: Flexible to accommodate movement and vibration
• Temperature Range: -40°C to +170°C, depending on the material
• Features a durable Diaphragm Barrier for enhanced protection
• Constructed with high-quality Elastomeric Seals to ensure reliability
• Designed as a Diaphragm Barrier to prevent contamination and maintain integrity

Technical Parameters:

Applications:

The HONGUM Rubber Diaphragm Seals are designed for a wide range of product application occasions and scenarios, making them an essential component in various industrial settings. These seals are particularly suitable for use in industrial, chemical, and food processing environments where reliability and durability are paramount. The versatility of HONGUM Rubber Diaphragm Seals allows them to function effectively as a diaphragm barrier, providing excellent sealing performance to protect sensitive equipment from contamination and pressure fluctuations.

In industrial applications, the HONGUM Rubber Diaphragm Seals serve as a critical rubber gasket solution, ensuring tight sealing in pumps, valves, and pressure sensors. Their robust construction, often made from high-quality FKM materials and other specialized compounds, enables them to withstand harsh operating conditions, including exposure to aggressive chemicals and extreme temperatures ranging from -40°C to +170°C depending on the material used. This wide temperature tolerance makes these seals ideal for processes that involve thermal cycling or extreme heat and cold.

Within chemical processing plants, these rubber gaskets play a vital role in maintaining the integrity of fluid containment systems. The diaphragm barrier feature ensures that no leakage or cross-contamination occurs, which is crucial for handling hazardous or reactive substances safely. The chemical resistance of the FKM material further enhances the seal’s durability and lifespan, reducing downtime and maintenance requirements.

In food processing scenarios, hygiene and safety are critical. The HONGUM Rubber Diaphragm Seals provide a reliable sealing solution that complies with stringent industry standards. Their low-maintenance design helps minimize cleaning efforts and operational interruptions, while their resistance to temperature variations ensures consistent performance during sterilization and other temperature-sensitive processes.

Overall, the HONGUM Rubber Diaphragm Seals offer a dependable rubber gasket solution across diverse applications. Their diaphragm barrier capability, combined with material resilience and low maintenance needs, makes them an excellent choice for industries demanding high-performance sealing components that can endure challenging environments without compromising safety or efficiency.

Customization:

HONGUM offers customized Rubber Diaphragm Seals designed to meet your specific requirements with a high level of precision. Our Elastomeric Seals are manufactured with a tolerance of ±0.02mm, ensuring reliable performance in various applications. Made from premium materials such as FKM and other elastomers, these Diaphragm Barrier seals provide excellent flexibility to accommodate movement and vibration effectively. Whether you need a standard model or a fully customized solution, HONGUM's Rubber Diaphragm Seals deliver superior sealing performance and durability tailored to your needs.

Support and Services:

Our Rubber Diaphragm Seals are designed to provide reliable and efficient sealing solutions for various industrial applications. To ensure optimal performance and longevity of the product, please follow the installation and maintenance guidelines provided.

For installation, make sure the diaphragm seal is compatible with your system’s pressure and temperature specifications. Proper alignment and secure fastening are essential to prevent leaks and ensure accurate pressure measurement.

Regular inspection of the diaphragm seal for signs of wear, corrosion, or damage is recommended. Clean the seal using appropriate solvents that do not degrade the rubber material. Avoid exposure to harsh chemicals that may compromise the integrity of the diaphragm.

If you encounter any issues with the Rubber Diaphragm Seals, consult the troubleshooting section of the product manual. Common problems such as pressure signal loss or fluid leakage can often be resolved by checking for proper installation and seal integrity.

For specialized support, service requests, or replacement parts, please refer to the official documentation provided with your product. Our technical support team is dedicated to assisting you with any product-related inquiries to ensure your system operates smoothly.

Packing and Shipping:

Our Rubber Diaphragm Seals are carefully packaged to ensure maximum protection during transit. Each seal is individually wrapped in protective material to prevent damage and contamination. The products are then placed in sturdy, high-quality boxes that provide cushioning and support, minimizing the risk of deformation or punctures.

For shipping, we use reliable carriers with tracking options to ensure timely and secure delivery. Depending on the order size and destination, we offer various shipping methods including standard, expedited, and express services. All shipments are inspected before dispatch to guarantee product quality and customer satisfaction.

We also provide custom packaging solutions upon request to meet specific customer requirements. Our goal is to deliver your Rubber Diaphragm Seals safely and efficiently, maintaining the integrity and performance of the product.

FAQ:

Q1: What applications are HONGUM Rubber Diaphragm Seals suitable for?

A1: HONGUM Rubber Diaphragm Seals are ideal for use in pressure measurement devices, chemical processing, food and beverage industries, and other applications requiring reliable sealing under various conditions.

Q2: What materials are used in HONGUM Rubber Diaphragm Seals?

A2: HONGUM Rubber Diaphragm Seals are made from high-quality rubber compounds selected to ensure chemical resistance, durability, and flexibility for optimal performance.

Q3: Can HONGUM Rubber Diaphragm Seals withstand high temperatures?

A3: Yes, HONGUM Rubber Diaphragm Seals are designed to operate effectively within a specified temperature range, making them suitable for high-temperature environments. Please refer to the product specifications for exact temperature limits.

Q4: How do I install a HONGUM Rubber Diaphragm Seal?

A4: Installation instructions vary depending on the specific application, but generally, the seal should be carefully positioned to ensure a tight fit without twisting or stretching. For detailed guidance, please consult the HONGUM installation manual.

Q5: Are HONGUM Rubber Diaphragm Seals compatible with aggressive chemicals?

A5: HONGUM Rubber Diaphragm Seals offer good chemical resistance, but compatibility depends on the specific chemical involved. It is recommended to check the chemical compatibility chart provided by HONGUM before use.
